138-960MHz N Female Directional Coupler

Brand Name : Vinncom

Model Number : VN-DC-138960-ONx

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Contact Now

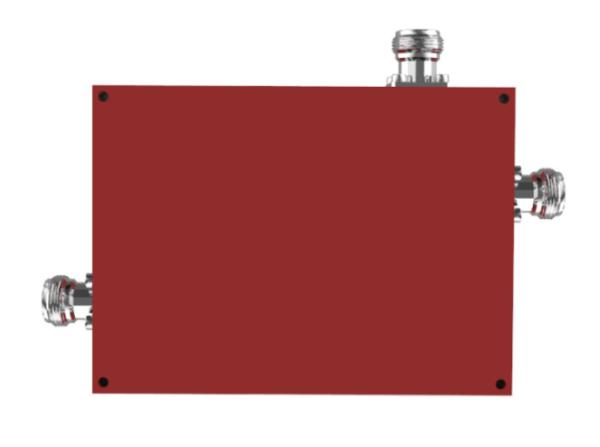

138-960MHz N Female Directional Coupler

138-960MHz N Female Directional Coupler

  • Portable for installation
  • Good returen loss
  • Good VSWR at all ports



 VN-DC-138960-ONx-xxx.doc.pdf

Part Number VN-DC-138960-ONx
Operating Frequency ( MHz ) 138-960
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 10 13 15 20
Tolerance ± 1.5 ± 1.5 ± 1.5 ± 1.7 ± 1.7 ± 1.7 ± 1.7
Insertion Loss (dB) ≤1.8 ≤1.8 ≤1.1 ≤1.2 ≤1.2 ≤0.5 ≤.0.4
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥31 ≥33 ≥38
IM3 (dBc @ 2×43dBm)@xxx -153
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) max) 300
Peak Power 1200 (Watt, max)

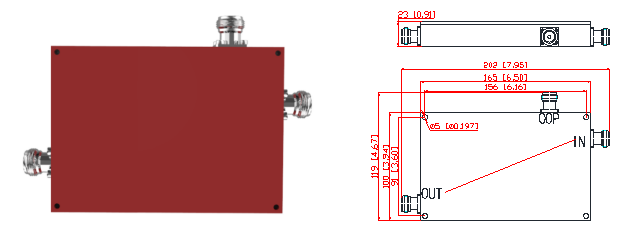

Dimension (mm) 165×100×23
Net Weight (g) 870± 5%
Packing Dimensions (mm) 230×135×35
Packing Carton Size (mm) 470×280×115
ROHS Compliance Yes



138-960MHz N Female Directional Coupler
