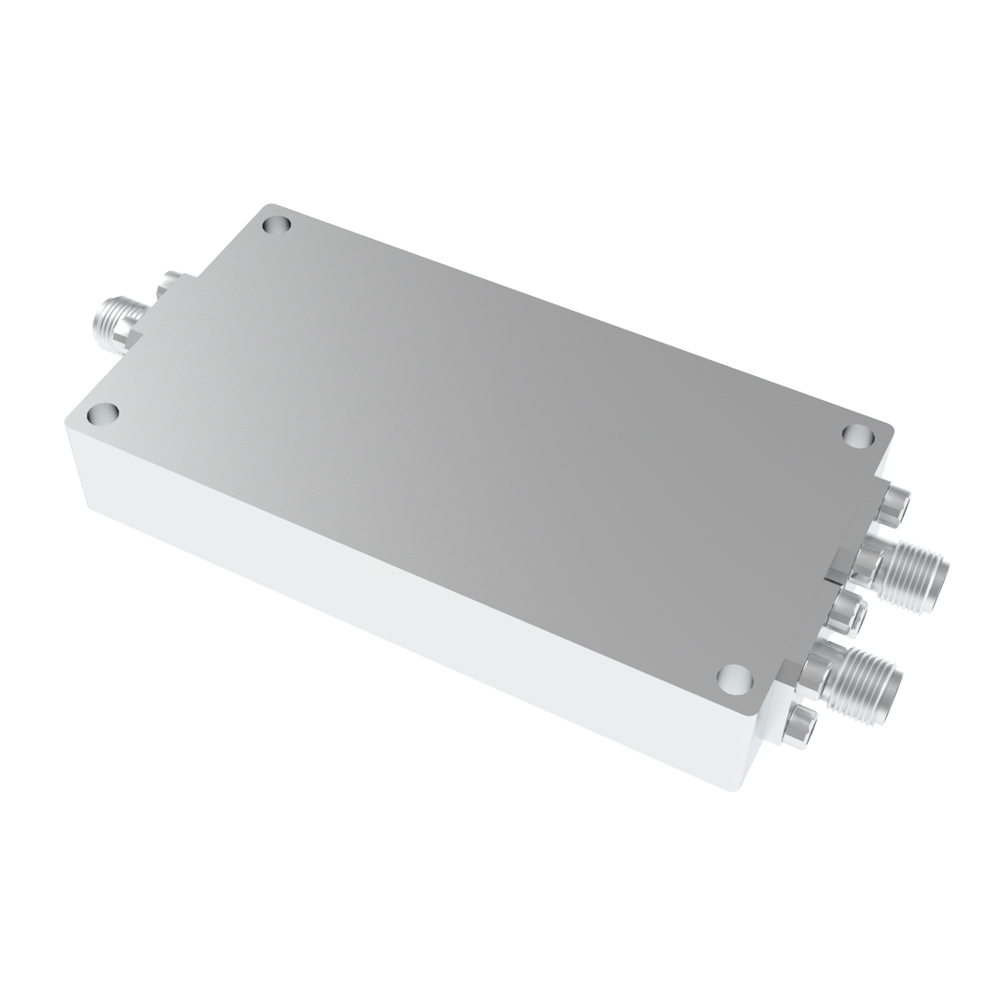

Through Hole Mounting Antenna Power Divider Splitter 8000MHz 50ohm Custom

Brand Name : Vinncom

Model Number : VN-PD-400-8000-OS2

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Operating Frequency ( MHz ) : 400-8000

Impedance( Ohm ) : 50

Input VSWR : ≤1.30

Output VSWR : ≤1.20

Insertion loss : ≤1.5

Average Power (Watt max.) : 30W max. / 2W max. as combiner

Isolation(dB) : ≥18

Amplitude Balance(dB) : ±0.2

Phase Balance : ±3°

Operating Temperature( ℃ ) : -35 ~ + 75c
