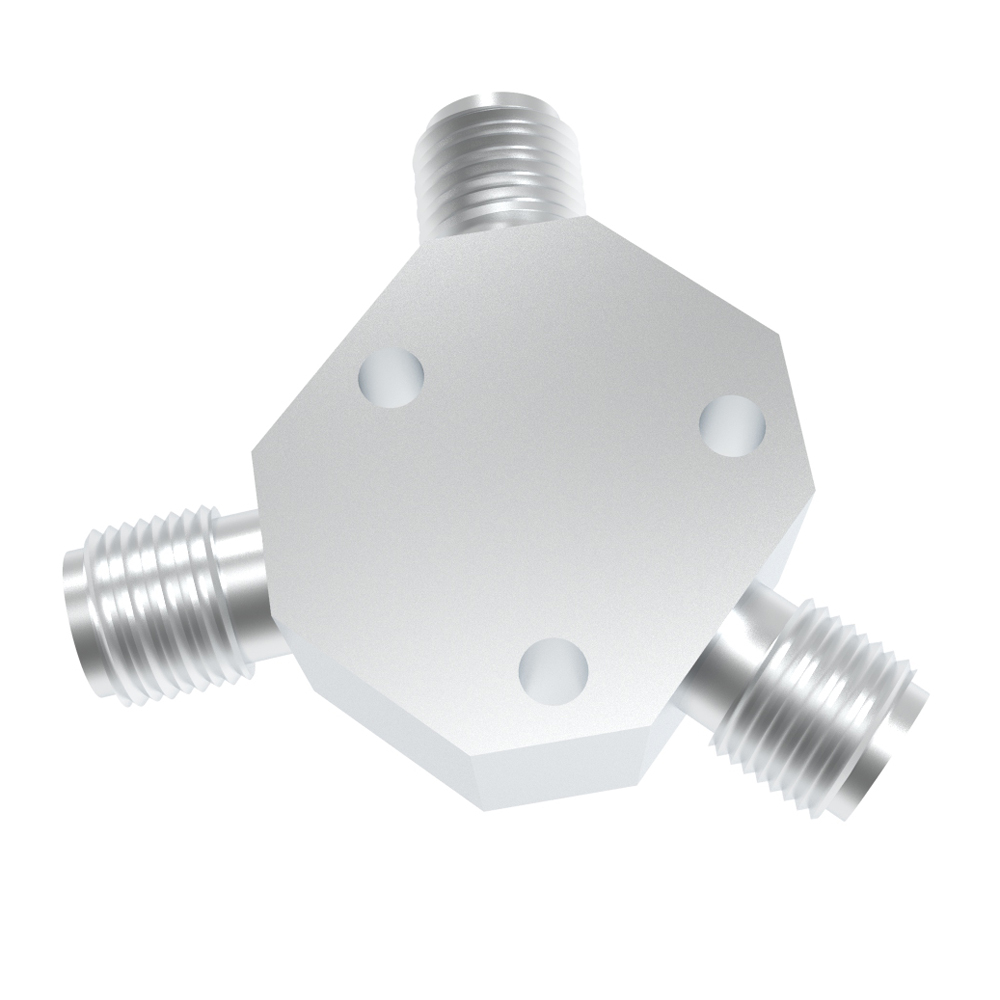

Female Waveguide Power Splitter Divider Combiner 50G 1W 2.4mm

Brand Name : Vinncom

Model Number : VN-PD-50G-2.4-1W

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( GHz ) : DC-50G

Impedance( Ohm ) : 50

Input VSWR : ≤1.50

Output VSWR : ≤2.50

Insertion loss : ≤7.8

Average Power (Watt max.) : 1W

Isolation(dB) : ≥9

Amplitude Balance(dB) : ±0.8

Phase Balance : ±8°

Operating Temperature( ℃ ) : -35 ~ + 75c
