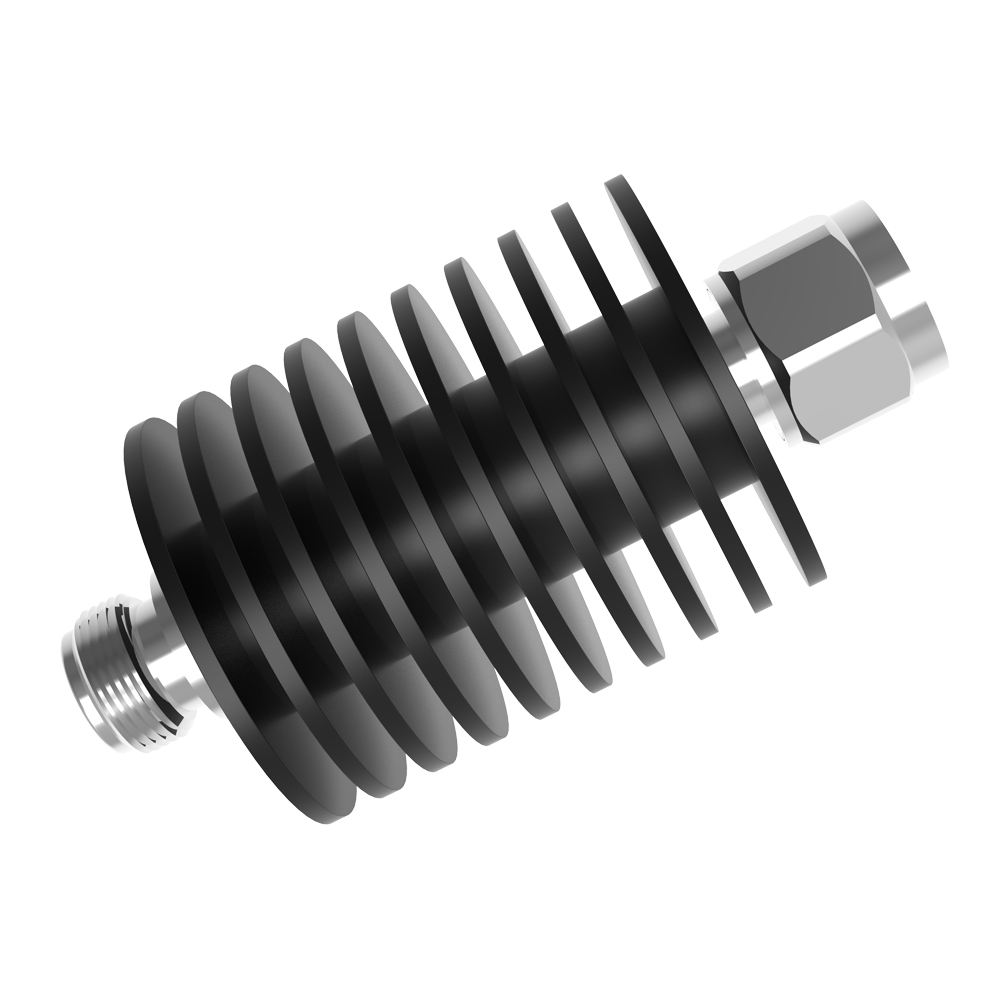

RF 25W DC-18G Round Type Black Color High Frequency SMA Male-SMA Female Attenuator
- Wide band
- Good VSWR
- Attenuation Range Wide
| Part Number | VN-AT-18G-25W-SMA |
| Operating Frequency | DC-18 GHZ |
| Impedance ( Ohm ) | 50 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Handling Power (Watt, max) | 25W |
| Interface | SMA Male-SMA Female |
| Operating Temperature ( ℃ ) | -55~+125℃ |
| Attenuation(dB) | 1~10 | 11~20 | 21~30 | 40~50 | VSWR |
| DC~4 | ±0.4 | ±0.5 | ±0.6 | ±0.7 | ≤1.20 |
| DC~8 | ±0.5 | ±0.6 | ±0.8 | ±0.8 | ≤1.25 |
| DC~12.4 | ±0.7 | ±0.8 | ±0.9 | ±1.0~1.1 | ≤1.35 |
| DC~18 | ±0.8 | ±0.9 | ±1.1 | ±1.2~1.3 | ≤1.45 |

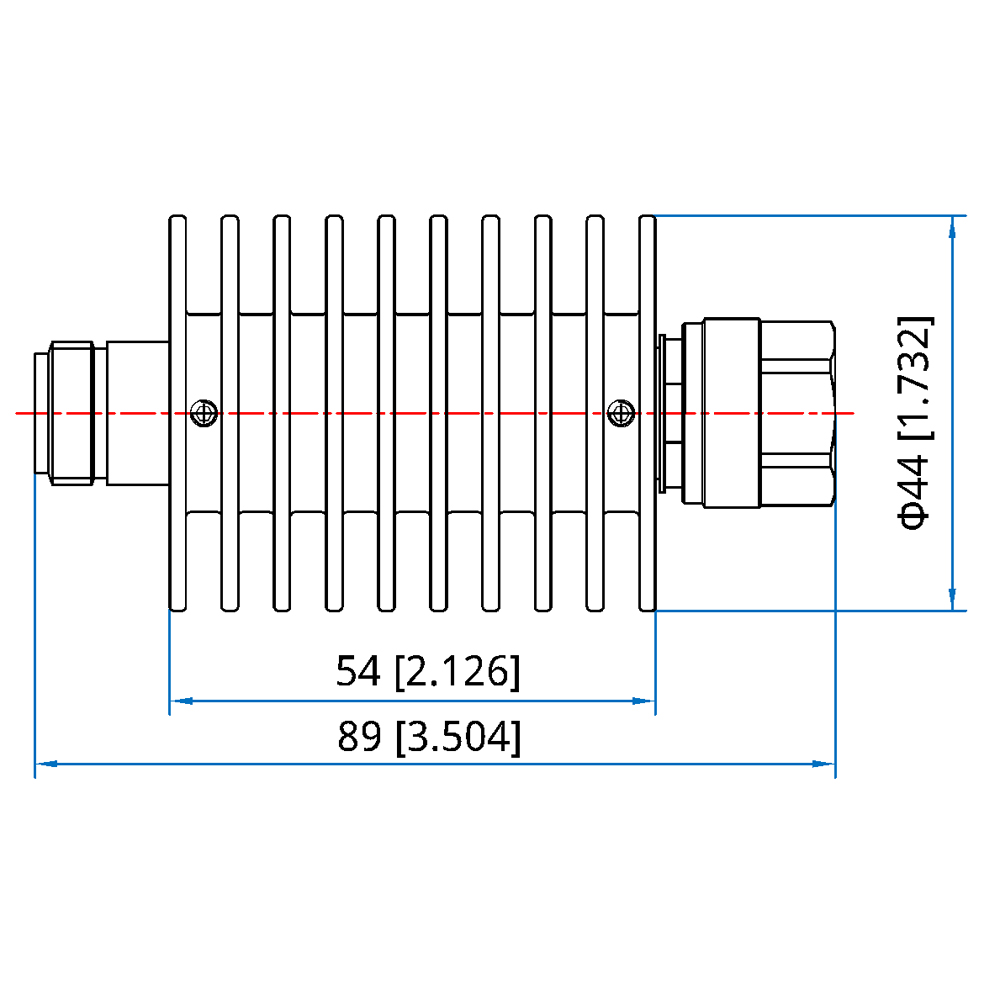

| Dimension (mm)(L×W×H, excl connector) | Φ44*54mm |
| Net Weight (g) | / |
| Packing Dimensions (mm,L×W×H) | / |
| Packing Carton Size (mm,L×W×H) | / |
| ROHS Compliance | Yes |
Related Product:18G 25W N Male-N Female RF Attenuator
Our Company
VINNCOM is located in Hefei China with more than 16,000(total 35,000) square meters manufacturer center. Our products include power splitter,coupler,hybrid, dummy load,attenuator, combiner,waveguide components,etc
We have senior R&D team who are specialized in the research of RF components for market demands based on the designs of micro-strip ,waveguide,multilayers,semiconductor and film technology.
We are supplying some big players in the world and products are widely used in DAS, Navigation,telecom systems,sensor systems and fibers,etc.
We believe that co-operation is based on multi-win and sharing ,and we are looking forward to establishing good relationship with you all over the world.
Product Application
Package And Delivery
FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.
2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.
3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.
4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.
5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.
6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee
Welcom to inquiry...
