DC-4G 10W N Male-N Female 3~30dB Attenuator

Name: DC4G 10W N MaleN Female 330dB Attenuator
Brand: Vinncom
Price: 1 USD

Buy cheap DC-4G 10W N Male-N Female 3~30dB Attenuator product

Brand Name : Vinncom

Model Number : VN-AT-4G-10W-ONX

Certification : ROHS ISO9000

Place of Origin : CHINA

MOQ : 5 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300pcs per day

Connector : N male - N female

Frequency : DC-3.8GHz DC-4GHz

Design : Integrated design

Contact Now

DC-3.8GHz 10 Watts N Male-N Female 3~30dB RF Coaxial Attenuators

Good VSWR
Attenuation Range Wide
High-gain

VN-AT-4G-10W-ONx.pdf

Part Number	VN-AT-3.8G-10W-ONX
Operating Frequency ( MHz )	DC-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	10
Interface	N Male - N Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	3	5	6	10	15	20	30
Attenuation Tolerance(dB)	±0.5	±0.5	±0.6	±0.8	±1	±1.5	±1.8

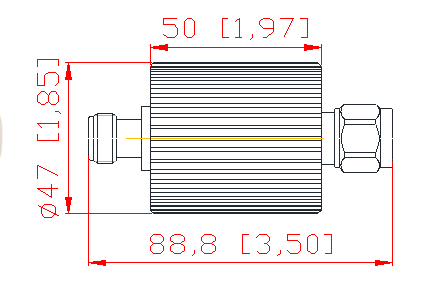

Dimension (mm)(L×W×H, excl connector)	50×Φ47
Net Weight (g)	210± 20
Packing Dimensions (mm,L×W×H)	105 × 65 ×65
Packing Carton Size (mm,L×W×H)	350 × 350 × 225
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
