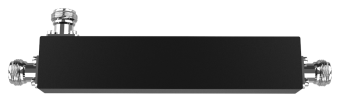

350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 350520MHz XdB Directional Coupler RF Antenna Combiner For Indoor Outdoor
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-DC-035052-INx

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Color : Black

Frequency Range : 350-520MHz

Impedance : 50Ω

Insertion Loss : ≤1.2dB

Material : Aluminum Alloy

Operating Temperature : -40℃~+85℃

Power Handling : ≤300W

Product Name : RF Antenna Coupler

Storage Temperature : -55℃~+85℃

VSWR : ≤1.2

Contact Now

350-520MHz xdB Directional Coupler

Part Number	VN-DC-035052-INx
Operating Frequency ( MHz )	350-520
Impedance ( Ohm )	50
VSWR	≤1.2
Coupling (dB)	5 ± 0.8	6 ± 0.8	10 ± 1	15 ± 1	20 ± 1	30 ± 1.2
Insertion Loss (dB)	≤2.0	≤1.6	≤0.7	≤0.3	≤0.1	≤0.04
Isolation (dB)	≥25	≥26	≥30	≥35	≥40	≥50
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	151X31X17
Net Weight (g)	330± 20
Packing Dimensions (mm,L×W×H)	190 ×80 × 45
Packing Carton Size (mm,L×W×H)	430 ×400 ×240
ROHS Compliance	Yes

350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor
