350-520MHz 4 Way N Female Power Splitter For Seamless Signal Distribution

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 350520MHz 4 Way N Female Power Splitter For Seamless Signal Distribution
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-035052-IN4-R

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Interface : N Female

Frequency Range : 350-520

VSWR : ≤1.18

Impedance : 50

Split Loss : ≤6.4

Application : Indoor

ROHS : Compliance

Contact Now

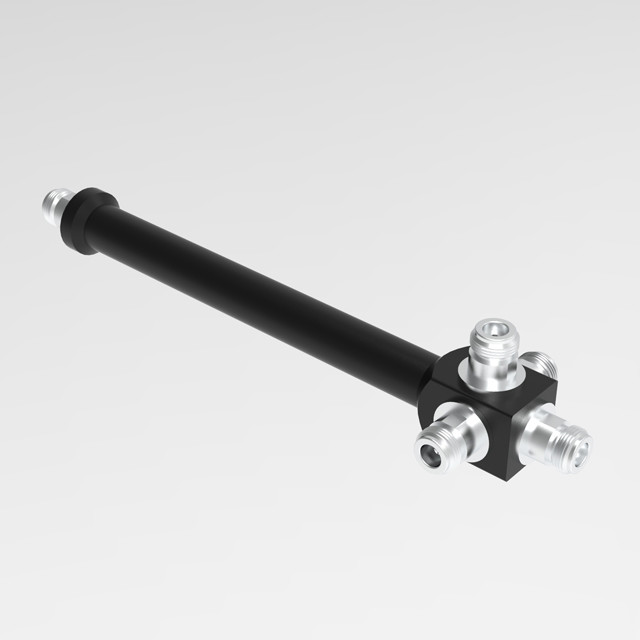

350-520MHz 4 Way N Female Power Splitter

Part Number	VN-PS-035052-IN4-R
Operating Frequency ( MHz )	350-520
Impedance ( Ohm )	50
VSWR	≤1.18
Split Loss (dB)	≤6.4
IM3 (dBc @ 2×43dBm)	-150 / -155/ -160/-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200

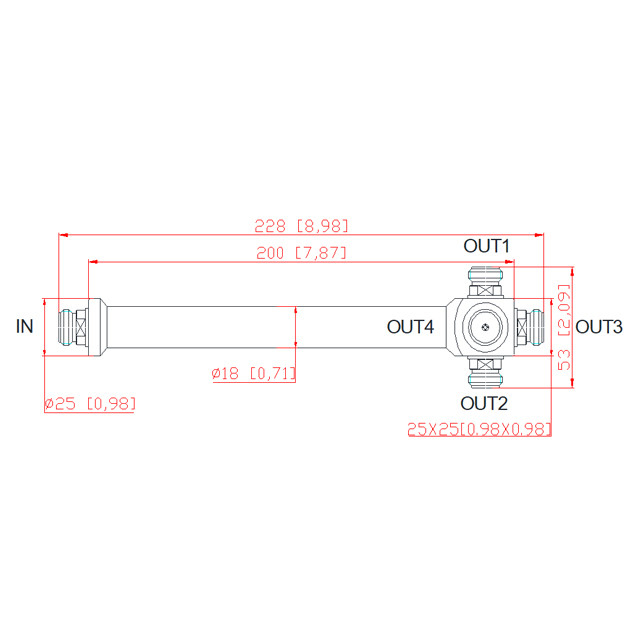

Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	195 ± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 50
Packing Carton Size (mm,L×W×H)	540 × 420 × 160
ROHS Compliance	Yes
