450-900MHz 2in 2out DIN Female Hybrid Coupler

Brand Name : Vinncom

Model Number : VN-HC2x2-04509-OD-xxx

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 60pcs per day

Frequency : 450-900MHz

Connector : DIN Female

Color : Customized

OEM/ODM : Acceptable

Application : DAS IBS

ROHS : Compliance

Design : Wide Band

Contact Now

450-900MHz 2in 2out DIN Female Hybrid Coupler



  • Portable for installation
  • High isolation
  • Good returen loss

                                                                                                                                                          VN-HC2x2-04509-OD-xxx.pdf
Part Number VN-HC2x2-04509-OD-xxx
Operating Frequency ( MHz ) 450-900
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.5
Insertion Loss (dB) 3.5
Isolation (dB) ≥22
IM3 (dBc @ 2×43dBm)@xxx -150 / -155 / -160 /-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500

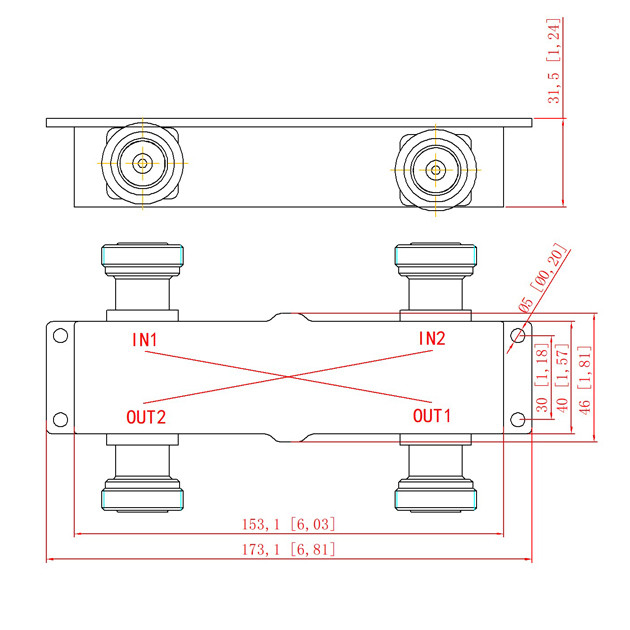

Dimension (mm)(L×W×H, excl connector) 173.1×46×31.5
ROHS Compliance Yes

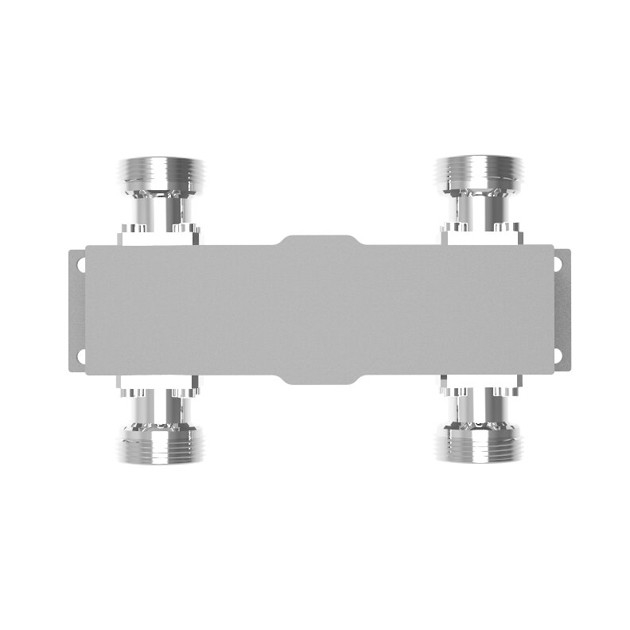

                                                                                                                                                 450-900MHz 2in 2out DIN Female Hybrid Coupler450-900MHz 2in 2out DIN Female Hybrid Coupler
