Outdoor 130-180MHz NF 3 Way 5dB Coupler / Splitter

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Outdoor 130180MHz NF 3 Way 5dB Coupler Splitter
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-013018-ON3-S

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Interface : N Female

Frequency Range : 130-180

VSWR : ≤1.30

Impedance : 50

Split Loss : ≤5.5

Application : Indoor

ROHS : Compliance

Contact Now

130-180MHz NF 3 Way 5dB Coupler /Splitter

Part Number	VN-PS-013018-ON3-S
Operating Frequency ( MHz )	130-180
Impedance ( Ohm )	50
VSWR	≤1.30
Split Loss (dB)+Insertion Loss	≤5.5
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200

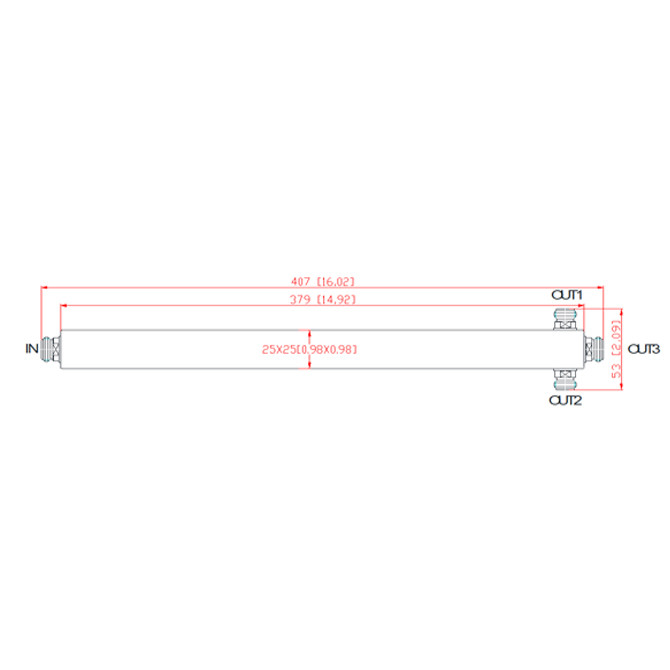

Dimension (mm)(L×W×H, excl connector)	379 × 25 × 25
ROHS Compliance	Yes

Product Tags:

3 Way NF Coupler / Splitter
