340/380-2700MHz 4.3-10 Female Power Splitter With 50 Ohm Impedance

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 3403802700MHz 4310 Female Power Splitter With 50 Ohm Impedance
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-03427-OPx-S

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Interface : P Female

Frequency Range : 340/380-2700

VSWR : ≤1.25/≤1.30

Impedance : 50

Split Loss : ≤3.5/≤5.6/≤7.1

Application : Indoor & Outdoor

ROHS : Compliance

Contact Now

340/380-2700MHz P Female Power Splitter

Part Number	VN-PS-03427-OPx-S-xxx
Operating Frequency ( MHz )	340/380-2700
Impedance ( Ohm )	50
Power Partition Coefficient@OPx	2-way	3-way		4-way
VSWR	≤1.25	≤1.25		≤1.30
Split Loss (dB)	≤3.5	≤5.6		≤7.1
IM3 (dBc @ 2×43dBm)@xxx	-140 / -150 / -155/ -160/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500

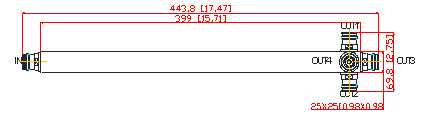

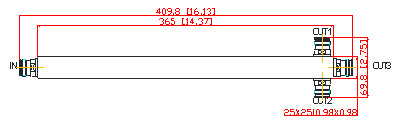

Dimension (mm)(L×W×H, excl connector)	318×25X25		365 × 25 × 25		399×25×25
Net Weight (g)	550 ± 20		645±20		735±20
Packing Dimensions (mm,L×W×H)	420×80×40		420×80×40		460×80×60
Packing Carton Size (mm,L×W×H)	434×435×195		434×435×195		480×445×275
ROHS Compliance	Yes
