5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 520db 138960MHz Low PIM 4310 Female RF Tapper
Brand: vinncom
Price: 1 USD

Brand Name : vinncom

Model Number : VN-TAP-019096-OPx-160

Certification : ISO 9000 ROHS

Place of Origin : china

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T

Part Number : VN-TAP-019096-OPx-160

Operating Frequency ( MHz ) : 138-960Mhz

Impedance ( Ohm ) : 50

IM3 (dBc @ 2×43dBm) : -160

Power Rating : 300W

Degree of Protection : IP65

Interface : 4.3-10 Female

Contact Now

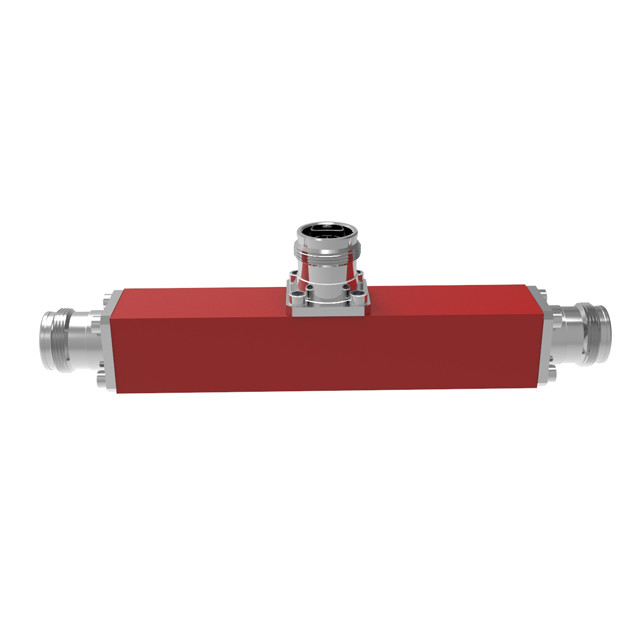

5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper

RF Tapper is a device which similar to directional coupler,it is used to split an input signal into

two parts for signal tapping out and main signal transmission,

RF Tappers have no isolation port ,so this cause RF tapper has no directivity.

Our RF Tapper has Low PIM and can reach -160.

Vinncom has variety of RF tapper with different frequency range and connector's types.

RF Tapper contains two frequency segments,three kinds of PIM.

Part Number		VN-TAP-019096-OPx-160
Operating Frequency ( MHz )		138-300/300-960
Tapper coupling(dB)		5	6	7	10	12	20
Coupling loss (dB)		≤2.2	≤1.9	≤1.5	≤0.9	≤0.8	≤0.4
VSWR		1.33	1.25	1.25	1.20	1.20	1.20
Coupling Tolerance(dB)	138-300MHz	6±1.0	6.6±0.8	7.8±0.6	10.2±0.6	12.2±0.6	20.2±0.6
	300-960MHz	5.5±0.6	5.5±0.8	6.8±0.6	9.5±0.5	11.5±0.5	19.8±0.6
Impedance ( Ohm )		50
IM3 (dBc @ 2×43dBm)		- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP65
Operating Temperature ( ℃ )		-35~75ºC
Interface		4.3-10 Female
Dimension (mm)(L×W× H, excl connector)		1302525
ROHS Compliance		Yes
Remark		Install Bracket Include

5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper
